On letting the spine into the handle
Before cutting the mortise for the spine, it is worthwhile to pause and contemplate the importance of accuracy and precision in this step.
Let us assume that the slot for the blade was cut properly (parallel to the cheeks of the handle). It is now critical that the mortise for the spine be parallel to the slot (and thus to the cheeks). Additionally, it is very important that the slot in the spine and the handle are aligned when the mortise is completed. This is true of both slotted and folded spines.
If either of these criteria are not met, the saw blade will deflect when the saw is assembled, an affliction that is difficult or impossible to remediate.
If the mortise is properly aligned, then bonus points are awarded for completing the mortise so that no gaps are visible when the saw is assembled.

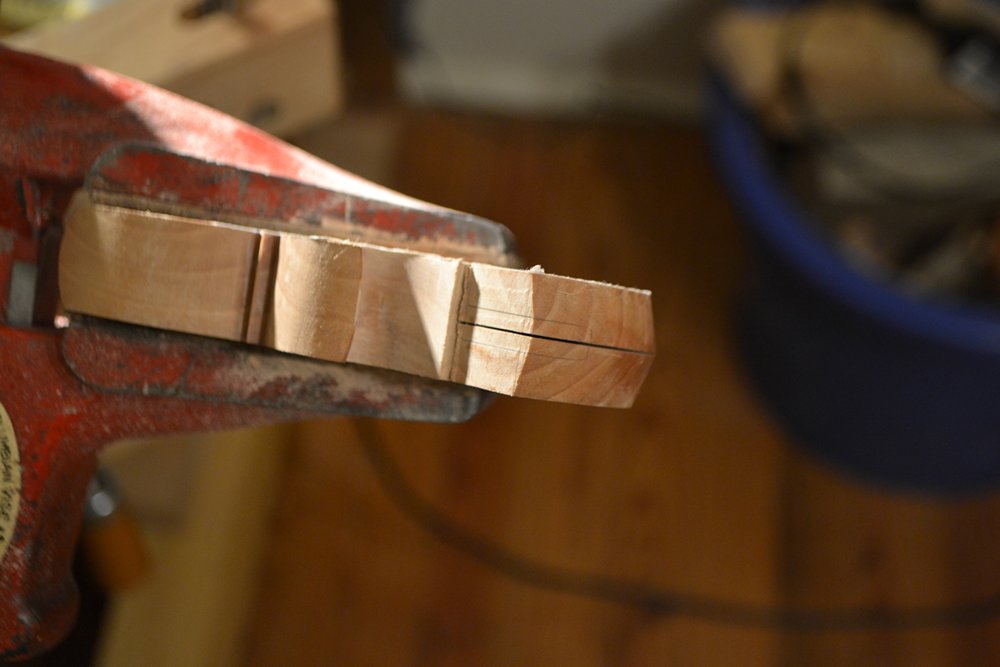

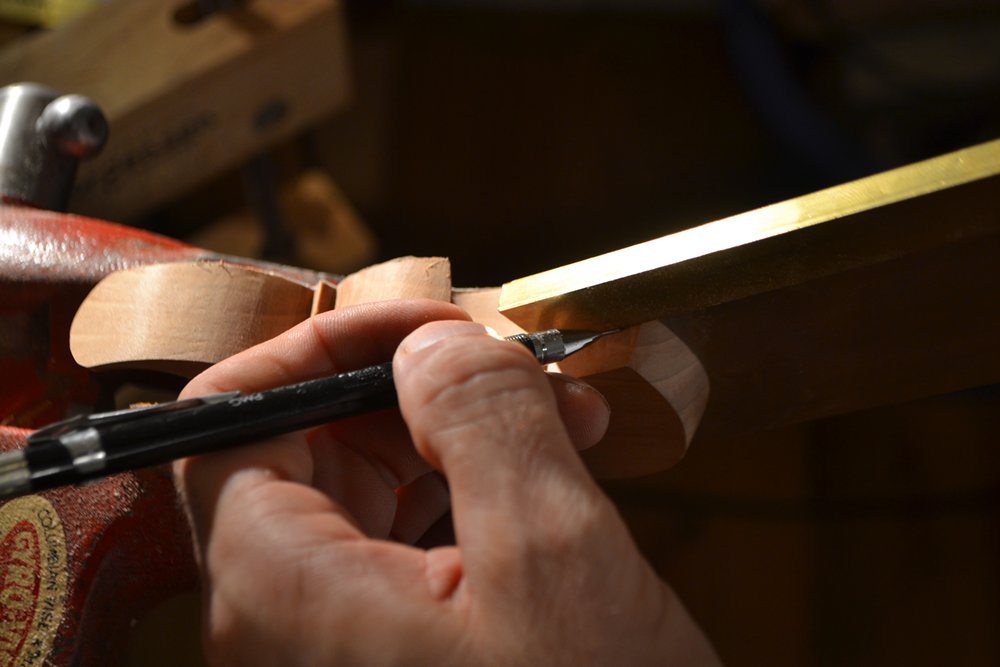

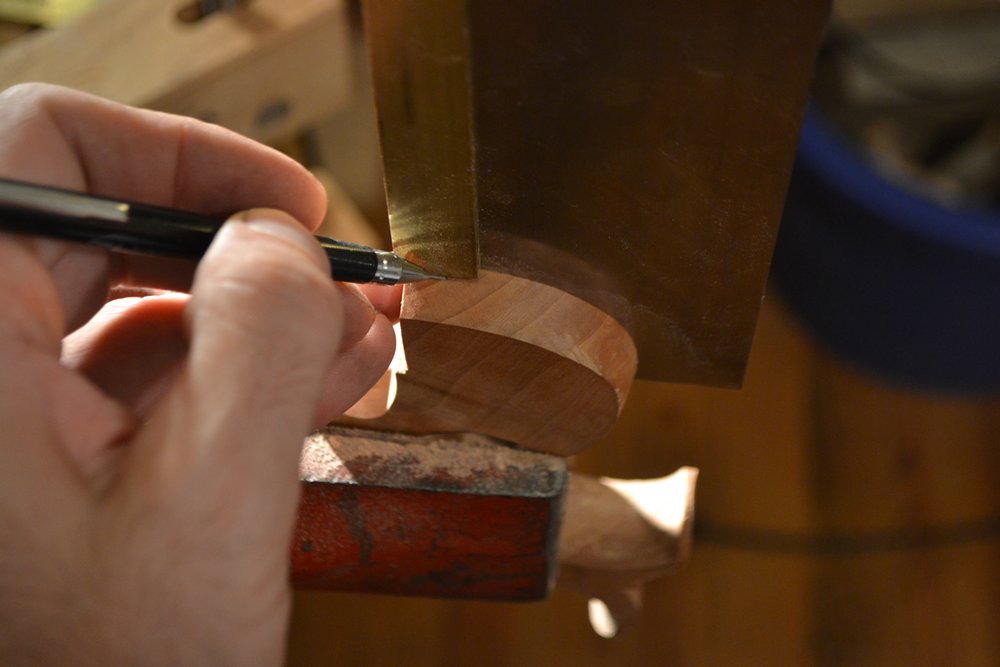

I mark the mortise by assembling the blade and spine, then sliding the blade into its slot in the handle. It the blade slot was cut correctly, the spine will naturally sit so that it is parallel to the cheeks of the handle, so long as the free end of the spine or blade is not pushed to one side or the other.

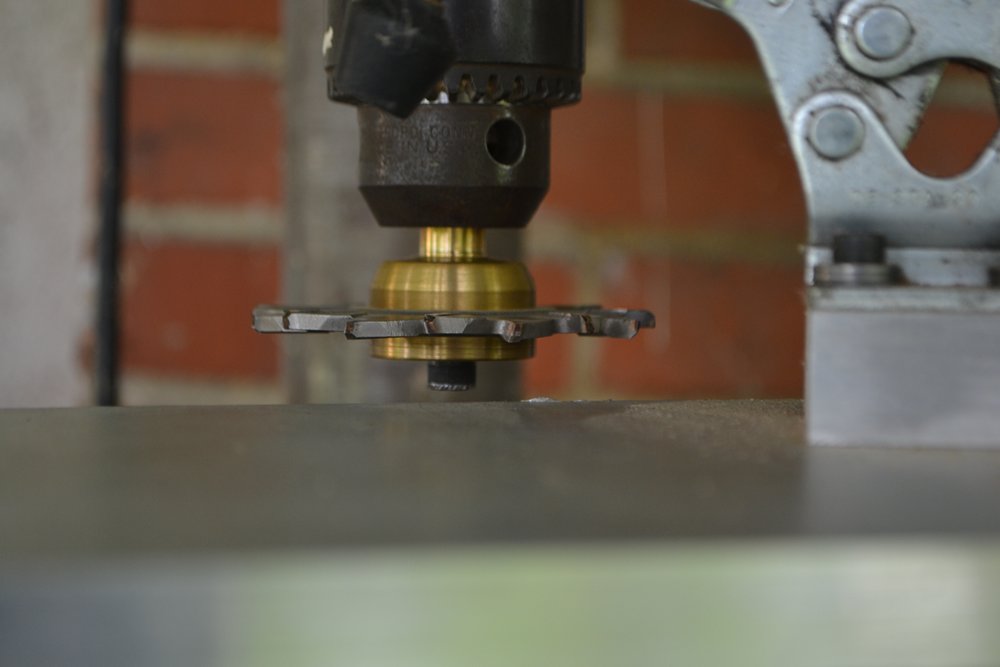

To ensure that the mortise is parallel to the cheeks, I use a special cutter to begin the slot. This cutter began life as a metal cutting saw. If you look closely, you may be able to see that the corners of the teeth have been ground to match the chamfer on the spines.

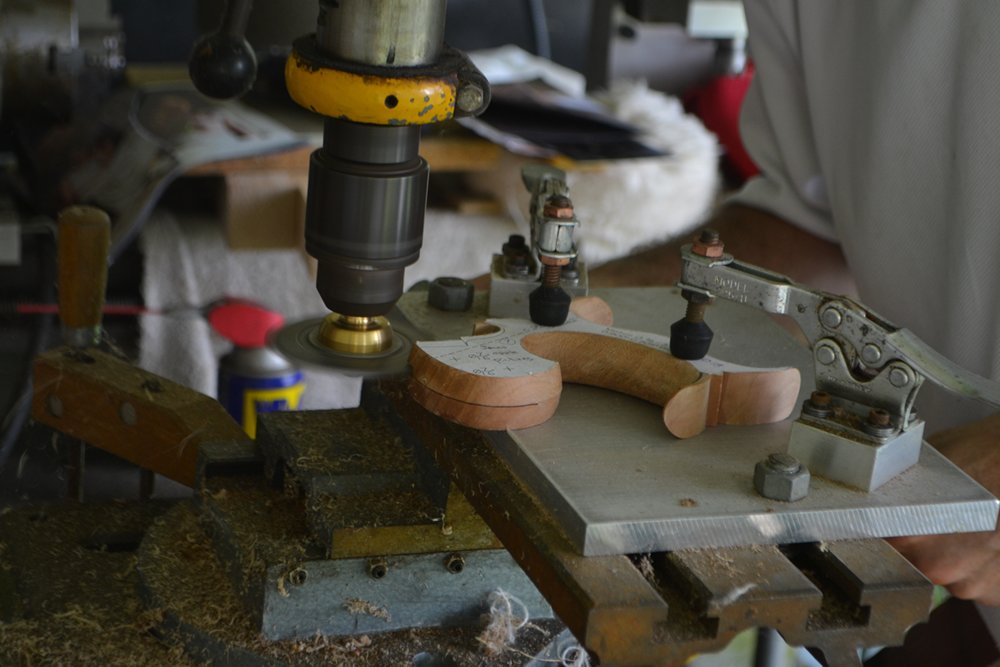

I use this cutter on the drill press. The handle is held on an X-Y table by two toggle bolts (doing this freehand would be extremely inadvisable).

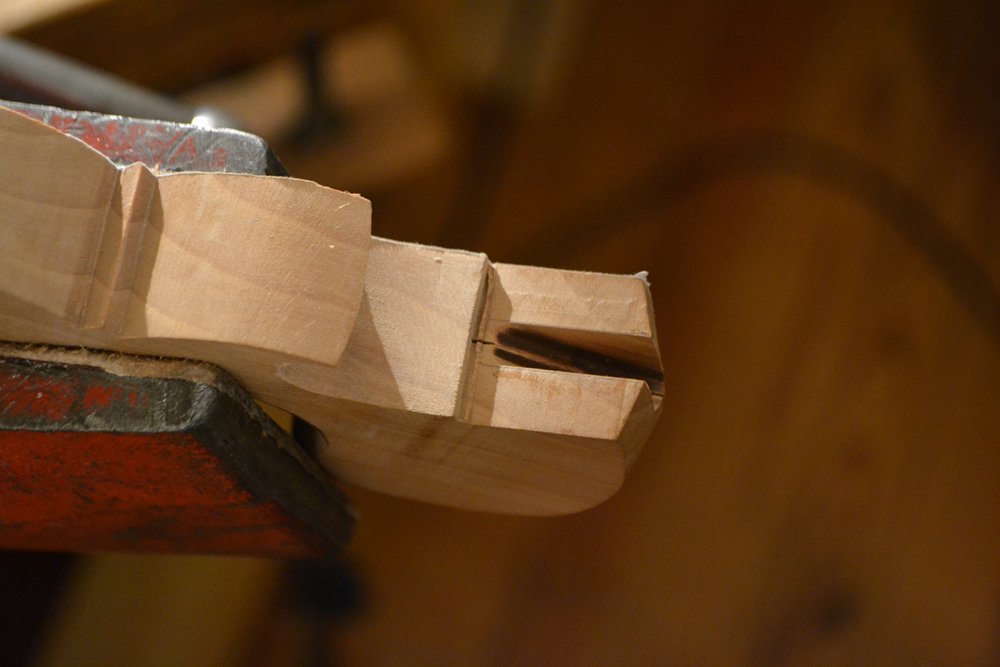

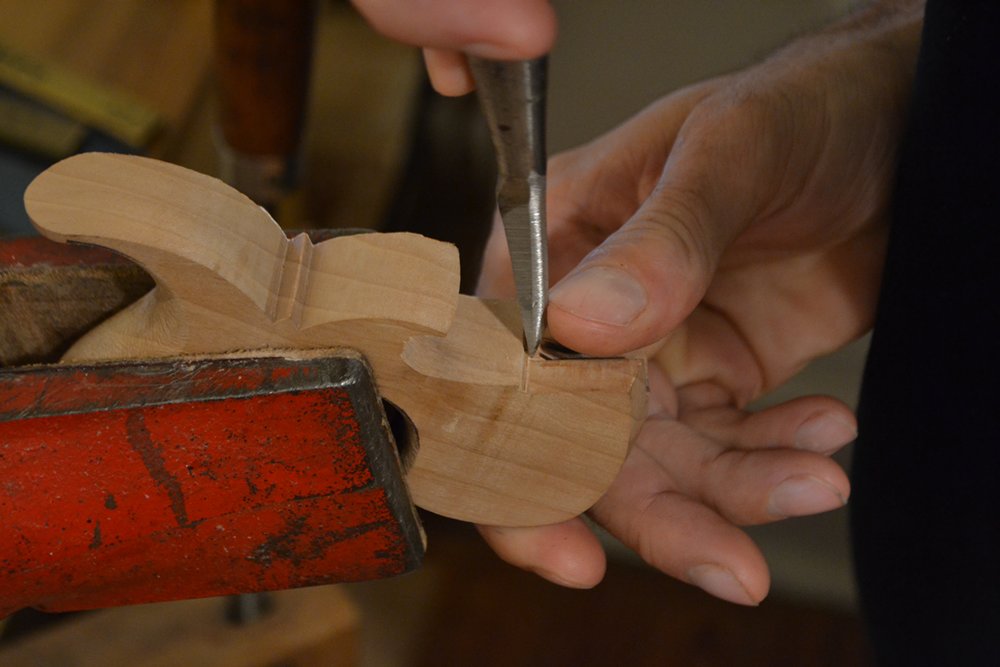

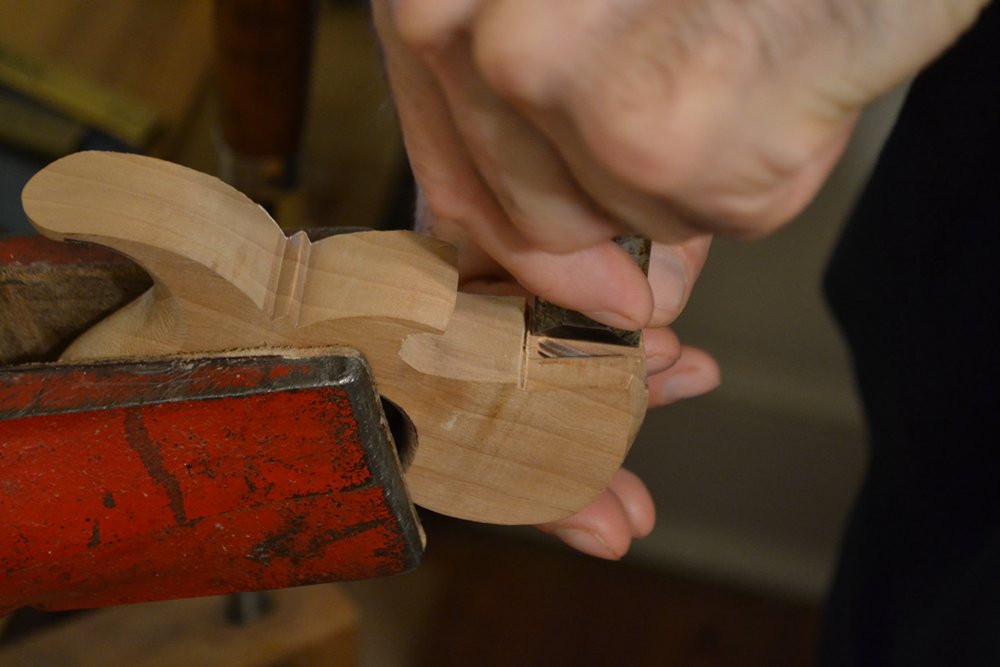

Now that the edges of the mortise have been cut, the remainder of the work must be done with chisels. Using the cheeks left by the cutter as a guide, completing the mortise is fairly easy. Slow work and constant checking with the spine usually yield a close fit.

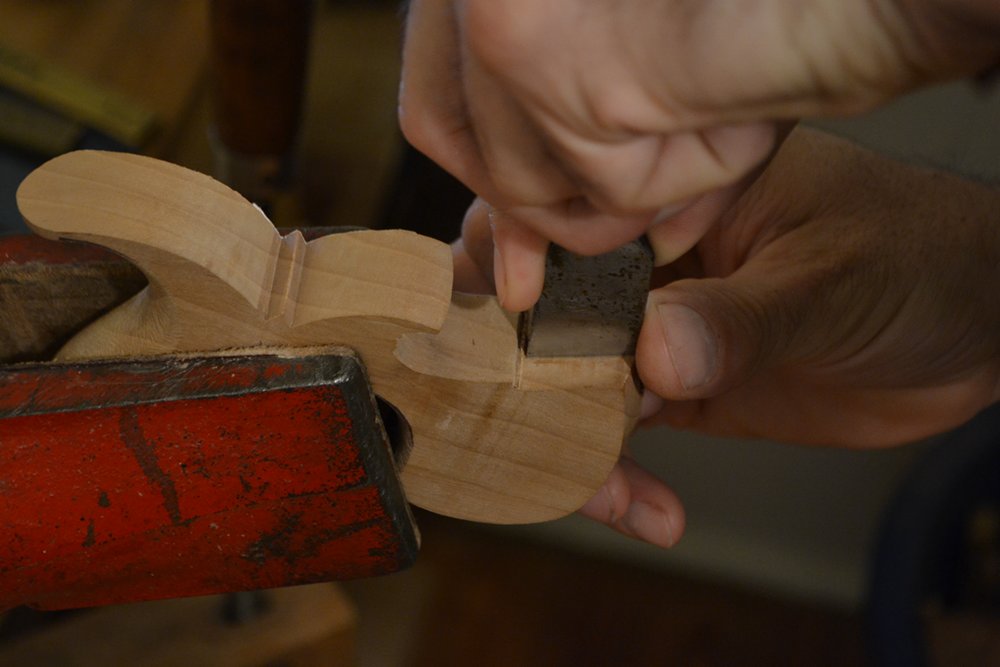

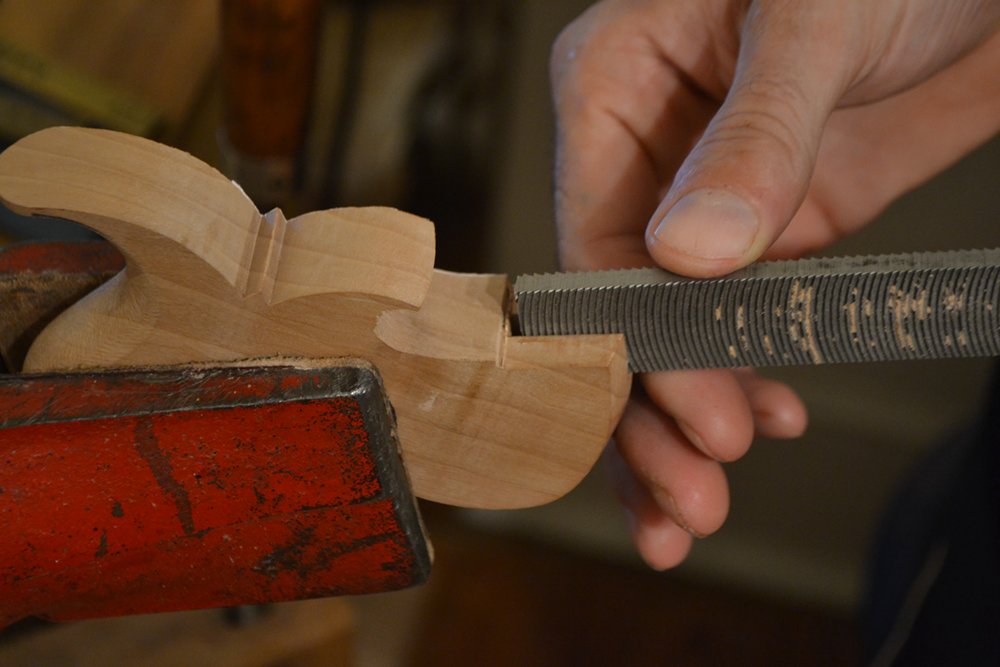

If needed, the mortise can be widened with a Vixen file or chisel. A mortise that is too narrow forces the cheeks apart, which leads to stresses when they are pulled back together by the saw bolts. If this stress is too great, the wood will crack around the mortise.

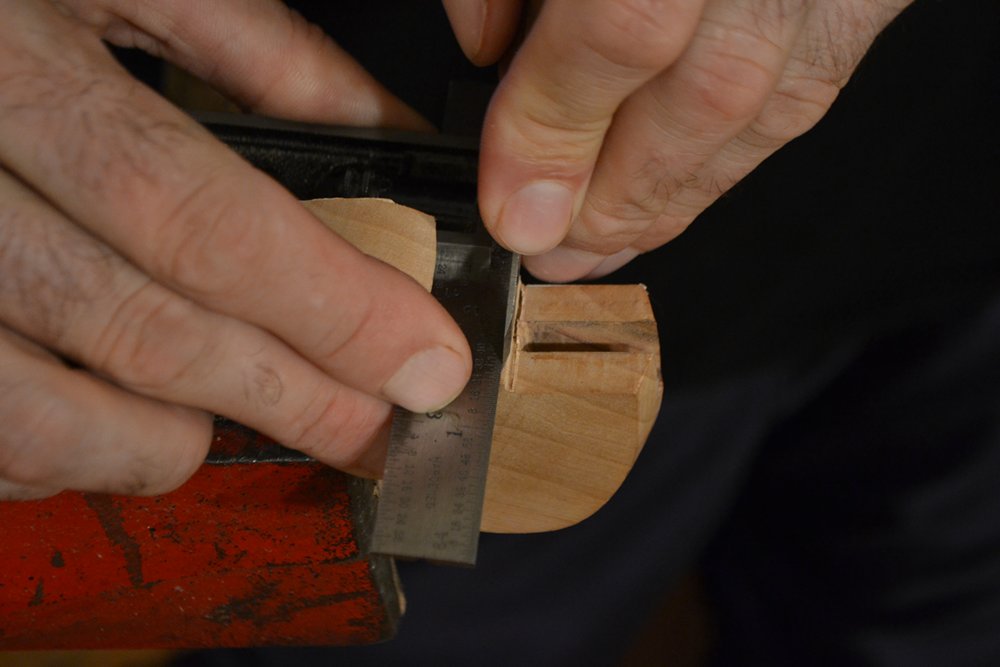

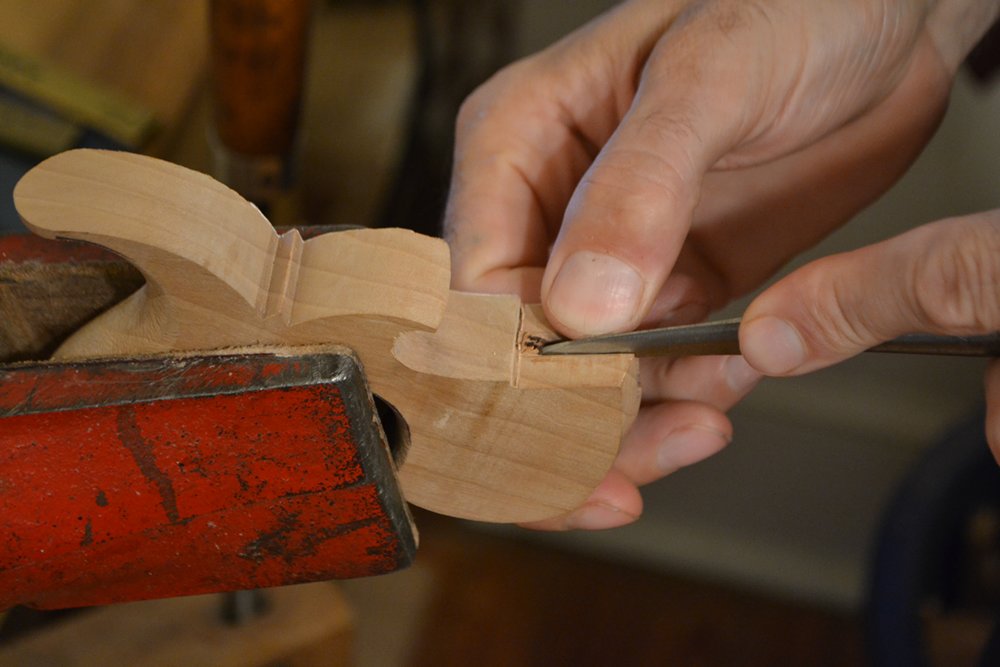

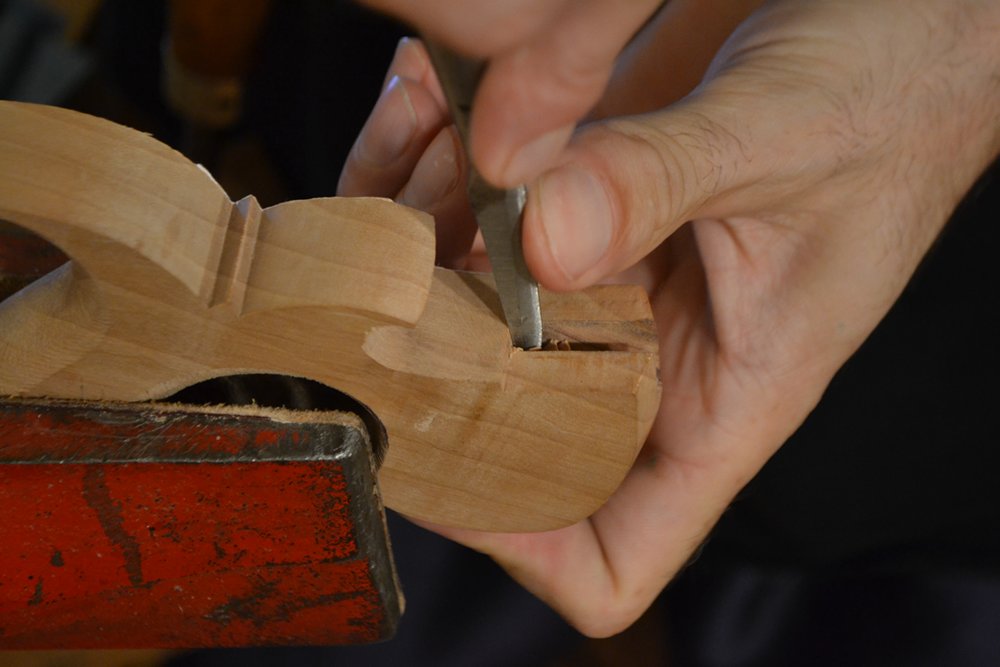

The little step is squared up with a marking knife and/or chisel that is guided by a square. The last thing I do is extend the back of the mortise to bring it in line with the step.

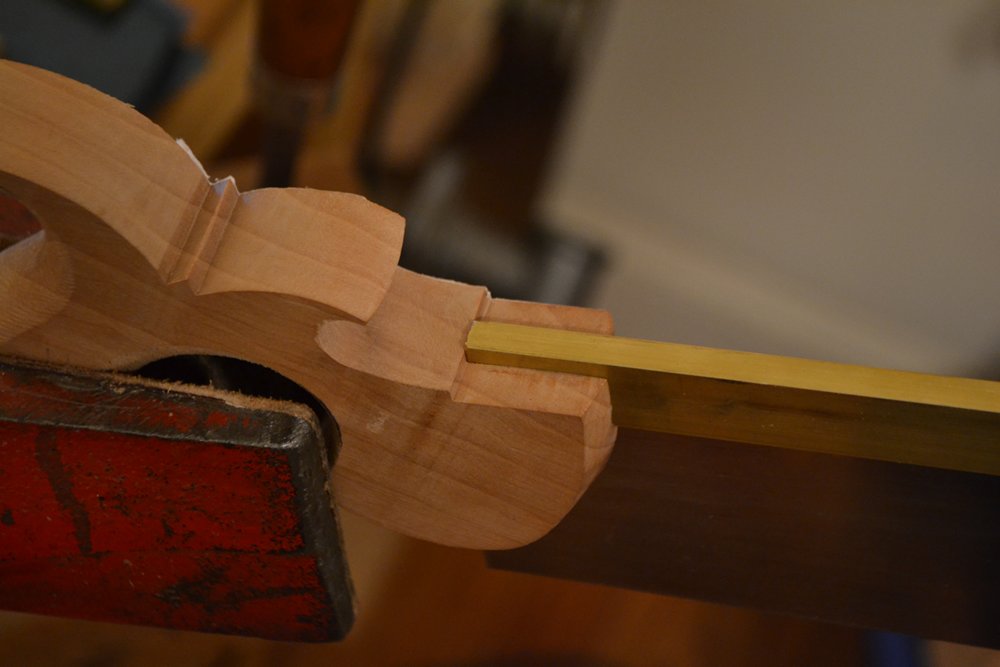

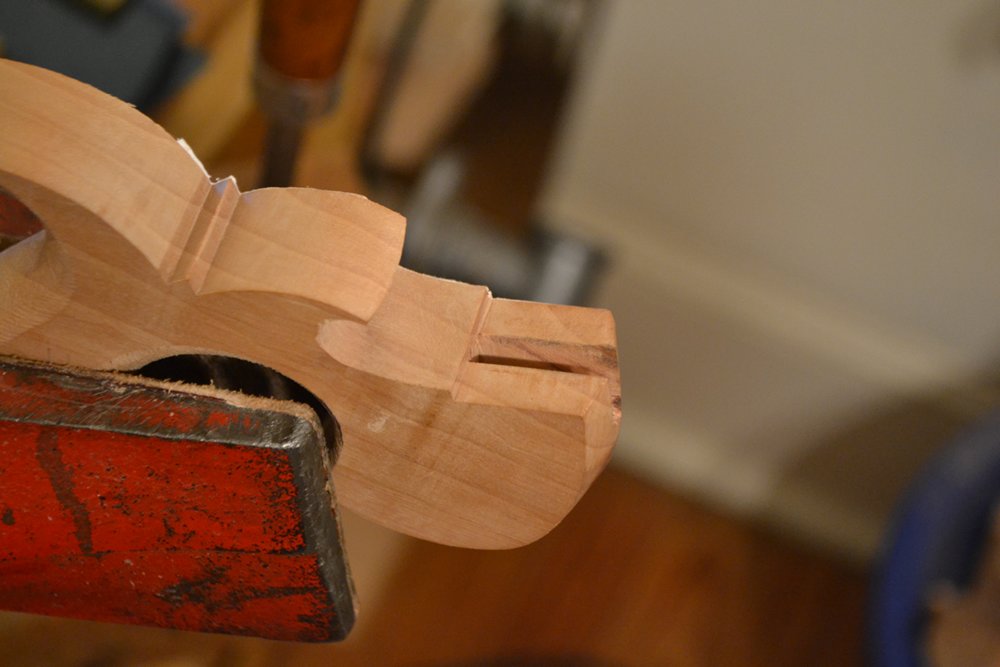

And if I did everything properly, the result is a nice, clean mortise that the spine just slips into.
